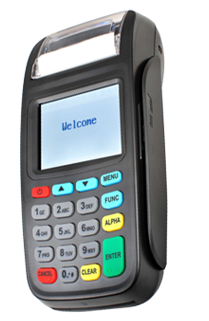

DSG8210
DSG8210 is a high performance and multiple function POS terminal. With its high security features and all in one design, The DSG8210 offers perfect payment solution.
- High secure, PCI PTS 3.x approval - Supports multiple tasks and multiple applications - Elegant and slim design, convenient swiping card vertically - Leading secure ARM11 processor (400MHz), outstanding performance in mass data and EMV transactions - Supports loading multiple applications. Multiple choices of integrated communication modules, such as GPRS, CDMA, WI-FI, PSTN and Ethernet - High speed thermal printer, up to 25 line/sec, easy load style,adjustable print gray, supports printing dual layer paper - EMV4.3 (Level 1&2), PBOC3.0, QPBOC3.0, CCC, CE, RoHS approved
|
Processor |
32-bit secure CPU, ARM11, 400MHz |
|---|---|
|
Memory |
128MB FLASH, 64MB SDRAM |
|
Display |
2.8 inch,320*240 TFT LCD |
|
Keypad |
10 alphanumeric keys, 8 function keys, 1 power switch key |
|
Magnetic Card Reader |
Compliant with ISO7811, ISO7812; Track 1/2/3, bi-directional swipe; supports smart error correcting |
|
IC Card Reader |
1 user card (EMV4.2), supports SLE4442/SLE4428 memory card |
|
PSAM Slot |
2 (optional 3) PSAM slots, compliant with ISO7816; Supports PPS protocol, up to 300kbps |
|
Contactless Card Reader (Optional) |
Supports Mifare classic, Mifare Ultralight, Mifare DESFire, ISO 14443 A & B, SONY FeliCa |
|
Internal PED |
Supports MK/SK, Fixed, DUKPT; Supports dual and triple length TDES; Supports RSA, AES |
|
Internal Wireless |
GPRS/CDMA/Wi-Fi/GPRS & Wi-Fi, supports full SSLv2/3 TLSv1 |
|
Internal Lan (optional) |
10Base-T/100Base-T,supports full SSL v2/3 TLSv1 |
|
Internal PSTN (Optional) |
Synchronous: V.22bis, V.29, supports 1200/2400/9600bps |
|
Remote Download |
Supports Innovexia TMS or FTP remote download |
|
Peripheral Port |
2 RS-232, Output: 5VDC 500mA |
|
Printer |
High speed thermal printer, Easy-load style
|
|
Language |
Supports Chinese (GB2312/GB18030), English, French, German, Latin, Russian, Arabic, Vietnam etc. |
|
Power Supply |
Input: 100 ~ 240VAC, 50Hz/60Hz; Output: 9.5VDC, 2.5A |
|
Battery (Optional) |
2600mAh, 7.4V |
|
Working Environment |
Temperature: 0 ~ 50 (32 ~ 122); Humidity: 10% ~ 90% (non-condense) |
|
Storage Environment |
Temperature: -20 ~ 60 (-4 ~ 140); Humidity: 5% ~ 95% (non-condense) |
|
Optional |
Leather case, backup battery, car jack charger, dock charger |
|
Dimensions |
190*89.5*56mm (L*W*H) |
|
Weight |
495g |
