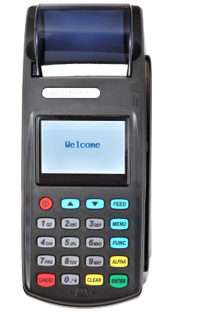

DSG8110
DSG8110 is a powerful and cost-effective CounterTop payment terminal, which designed by Innovexia. With its all in one design, DSG8110 is ready for the EMV chip & PIN, Magstripe and Contactless acceptance.
- Elegant and slim design, convenient swiping card vertically - 192MB memory, supports downloading multiple applications - 2.8" TFT LCD with Smooth signature capture function - Excellent performance for the PSTN Modem, Enternet and wifi communication - PCI PTS 3.x approved - 24MB memory, supports downloading multiple applications - Large capacity battery, over 400 transactions per charge - Integrated wireless communication MODEM, GPRS/CDMA/WIFI/GPRS&Wi-Fi - Integrated PSTN MODEM, supports PSTN MODEM coexists with wireless
|
Processor |
32-bits secure Processor |
|---|---|
|
Memory |
128MB FLASH, 64MB SDRAM |
|
Display |
2.8 inch, 320*240 TFT LCD, Optional signature capture function; 128x64 pixel LCD, white LED backlight (Optional) |
|
Keypad |
10 alphanumeric keys, 9 function keys, 1 power switch key |
|
Magnetic Card Reader |
Compliant with ISO7811, ISO7812; Track 1/2/3, bi-directional swipe; supports smart error correcting |
|
IC Card Reader |
1 user card (EMV4.3), supports SLE4442 / SLE4428 memory card |
|
PSAM Slot |
3 PSAM slots, compliant with ISO7816; Supports PPS protocol |
|
Contactless Card Reader (Optional) |
Supports Mifare classic, Mifare Ultralight, Mifare DESFire, ISO 14443 A & B, SONY FeliCa |
|
Internal PED |
Supports MK/SK, Fixed, DUKPT; Supports dual and triple length TDES; Supports RSA, AES |
|
Optional Wireless |
Wi-Fi |
|
Internal PSTN (Optional) |
Synchronous: supports 1200/2400/9600bps Asynchronous: up to 56Kbps |
|
Remote Download |
Supports Innovexia-TMS or FTP remote download |
|
Peripheral Port |
2 RS-232, Output: 5VDC 500mA |
|
Printer |
High speed thermal printer; Paper width: 58 +0/-1mm; Paper roll outside diameter: 38mm; Adjustable print gray, supports dual-layer paper, black label detection and smart paper positioning |
|
Language |
Supports Chinese (GB2312/GB18030), English, French, German, Latin, Russian, Arabic, Vietnam etc. |
|
Power Supply |
Input: 100 ~ 240VAC, 50Hz/60Hz; Output: 9.5VDC, 2.5A |
|
Working Environment |
Temperature: 0 ~ 50 (32 ~ 122); Humidity: 10% ~ 90% (non-condense) |
|
Storage Environment |
Temperature: -20 ~ 60 (-4 ~ 140); Humidity: 5% ~ 95% (non-condense) |
|
Dimensions |
215*89.5*62.8mm (L*W*H) |
|
Weight |
566g |
