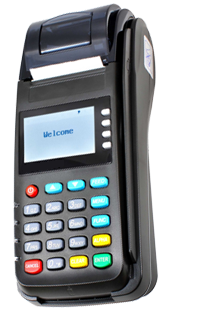

DSG7110

DSG7110 is a low cost, high performance and multiple function countertop terminal. The terminal adopts leading 32-bit CPU, large memory and Linux OS, which supports multiple tasks and multiple applications.

- Supports multiple tasks and multiple applications
- Leading ARM processor (400MHz)
- 160MB memory, supports loading multiple applications
- Multiple choices of integrated communication modules, such as PSTN, TCP/IP and Wi-Fi
- Supports complete version SSL (Security Socket Layer)
- Supports remote download via DSG TMS and FTP
- EMV2000(Level 1&2)PBOC2.0, CE, CCC, RoHS approved
- USB HOST, Up to 3 RS232 (optional), 5V@500mA output
- High speed thermal printer, up to 25 lines/sec

Processor

32-bit CPU ARM9 400MHz

Memory

128MB FLASH, 32MB SDRAM

Display

128*64 pixel LCD, white LED backlight and specific icon

Keypad

4 ATM keys, 10 alphanumeric keys, 9 function keys,1 ON/OFF key

Magnetic Card Reader

Compliant with ISO7811, ISO7812; Track 1/2/3, bi-directional swipe

IC Card Reader

1 user card (EMV4.2), supports SLE4442/SLE4428 memory card

PSAM Slot

2/3 SAM slots, compliant with ISO7816; Supports PPS protocol

Contactless Card Reader (Optional)

Supports Mifare classic, Mifare Ultralight, Mifare DESFire, ISO 14443 A & B,

SONY FeliCa

Language

Supports Chinese (GB2312/GB18030), English, French, German, Latin, Russian,

Arabic, Vietnam etc; supports Unicode

Internal MODEM (Optional)

Synchronous: V.22bis, V.29, supports 1200/2400/9600bps

Asynchronous: V.34, up to 33.6Kbps
Supports PPP dial, supports full SSLv2/3 TLSv1

Internal LAN (Optional)

10Base-T/100Base-T, supports full SSLv2/3 TLSv1

Internal Wi-Fi (Optional)

802.11b/g, supports full SSLv2/3 TLSv1

Remote Download

Supports DSG TMS or FTP remote download

Peripheral Port

2 RS-232 (up to 3), 5V @ 500mA DC output

1 RJ11 for line, 1 RJ11 for phone
1 RJ45 for TCP/IP

Printer

High speed thermal printer

Easy-load style
Speed: up to 25 lines/sec (75mm/sec)
Paper width: 58 +0/-1mm
Paper roll outside diameter: 50mm
Adjustable print gray, supports dual-layer paper

Power Supply

Input: 100 ~ 240VAC, 50Hz/60Hz; Output: 12VDC, 3A

USB

1 USB Host

Working Environment

Temperature: 0 ~ 50 (32?~ 122); Humidity: 10% ~ 90% (non-condense)

Storage Environment

Temperature: -20 ~ 60 (-4 ~ 140); Humidity: 5% ~ 95% (non-condense)

Dimensions

229*98*70mm (L*W*H)

Weight

600g
